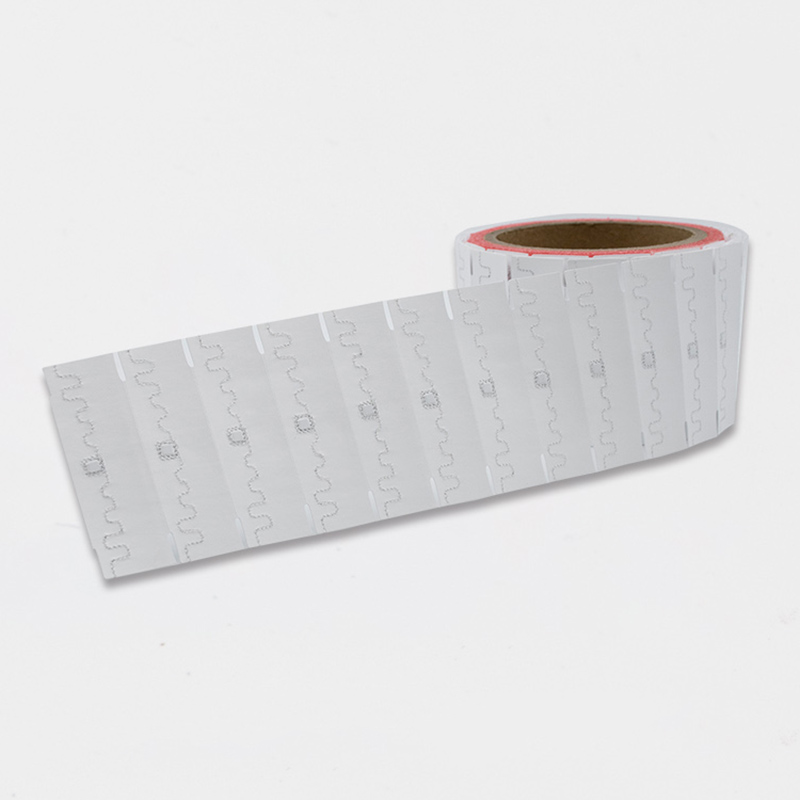

Neubla LA711-P RFID Tag

Description

Developed independently by Sunrfid with global and domestic patents, this label is engineered for rigorous industrial laundry environments. It merges superior durability with effortless printability, offering unmatched traceability for textiles and apparel. Supplied in roll format, these tags support simultaneous printing and encoding via RFID printers for on-demand customization, significantly boosting operational speed. Furthermore, they are ideal for seamless integration into automated labeling lines to enhance efficiency and minimize costs. Perfectly suited for laundry facilities, uniform tracking, hotels, medical linens, and premium fashion, Sunrfid labels enable precise wash-count statistics, flow monitoring, and automated inventory management.

Technical Features

Physical Features	Model	Neubla LA711-P
	Material	Polyester
	Length x Width	70 x 22 mm (2.7 x 0.9 in)
	Thickness	1.00 mm(0.04 in) on chip location only, Rest of tag is 0.65 mm(0.03 in)
	Weight	0.8 g
RFID Features	RFID Standard	EPC C1G2 (ISO18000-6C)
	Frequency	860-960 MHz(worldwide)
	Chip Type	NXP Ucode 9xe
	Memory	User-N/A; EPC-128 bits; TID-48 bits
	Data Storage	> 20 years
	Re-write	100,000 times
	Read Range(Fixed Reader)	FCC: > 7.5 m (24.6 ft) ETSI: > 6.0 m (19.7 ft)
	Read Range(Handheld Reader)	US: > 10.5 m(34 ft); EU: > 9.5 m(31 ft)
Other Features	Installation	Heat-sealing:Heat-seal the tag onto the textile at 210°C and 0.6-0.8 MPa for 20 seconds
	Warranty	200 washing cycles or 3 years, whichever comes first
	Washing Method	Laundry, Dry cleaning
	Water Extraction pressure	60 bars
	Chemical Resistance	Detergent, Softener, Bleach (Oxygen/ Chlorine), Alkali
	Washing Temperature	90°C (194°F)/15 minutes
	Pre-drying in Tumble	180°C (356°F)/30 minutes
	Ironing Tempereature	185°C (365°F)/10 seconds
	Sterilization Tempereature	135°℃ (275°F)/20 minutes
	Humidity/ Temperature-Operating	-20~+85℃(-4~185℉)/ 8-95%RH
	Customization	Printing, Encoding, Design, etc.
