5071 73x20mm Alien Higgs 10

Appurtenance:

Description

The 5071 UHF RFID label is specially developed for apparel tracking, retail inventory management, and logistics operations. Designed to deliver stable and efficient RFID performance, it works particularly well on packaging materials such as corrugated cartons, plastic totes, and transport containers, making it suitable for modern supply chain and warehouse applications.

Built to meet EPCglobal Class 1 Gen 2 standards, this RFID inlay supports reliable long-range identification and fast data capture in high-volume environments. Manufactured under ISO 9001 quality management and ISO 14001 environmental management systems, the product ensures consistent industry-grade performance, durability, and operational reliability across a wide range of RFID applications.

The Vibe label by RFID is designed for apparel, retail, andlogistics operations. It performs exceptionally well on packagingmaterials such as corrugated cardboard and plastic transportcontainers.

The product is complied with EPC global Class 1 Gen 2, ISO 9001quality management and ISO 14001 environmental managementstandards, ensuring reliable, industry-grade performance fordiverse use cases.

Equipped with the Alien Higgs 10 IC. Ideal for high volumeapplications, Higgs10 offers flexible EPC memory structuresupporting nominal 96-bit EPC formats, plus a 32-bit expansionfor longer EPC formats. Higgs 10 also features up to 32-bits foroptional User Memory data. The Alien IC is compatible with theglobal GS1 UHF Gen2v2 standard ISO /IEC 18000-63.

By enabling Privacy Mode, the label can be used for high-valueproducts, authenticity verification, and applications requiringenhanced privacy protection.

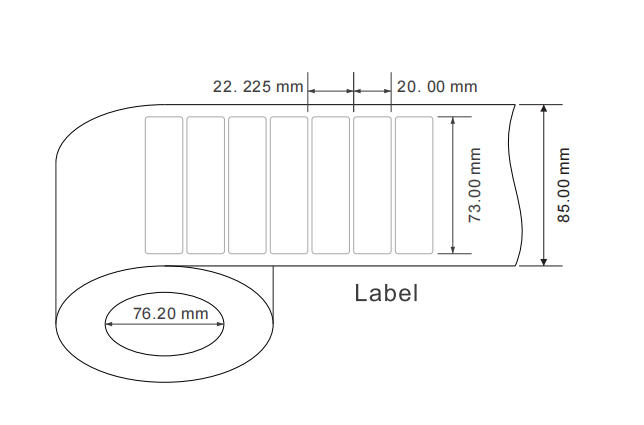

The label size 73 x 20 mm which is Compact format suitable forprinting QR codes, serial numbers, and other visible data. Idealfor stacked packaging applications.

Specifications

RFID Features Model 5071
Frequency 860-960 MHz
Chip Type Alien Higgs 10
Memory

Up to 128 EPC bits (nominally 96 bits)

Up to 32 User bits (with 96 bit EPC)

Data Storage > 10 years
Re-write 100,000 times
Read Range(2W ERP)

FCC: > 10.5 m, on cardboard; > 8.8 m, on

PTFEETSI: > 9.3 m, on cardboard; > 11.0 m on PTFE

Physical Features Dimensions 73 x 20 mm / 2.87 x 0.79 in
Material Coated Paper
Adhesive Hot Melt
Operating Temperature -40°C to 85°C / -40°F to 185°F
Storage Condition 20±5℃, 50±10% RH, Store away from sunlight
Other Features Installation Adhesive on clean & dry surface
Customization Printing, Encoding, Designing, etc.
Package 2,500 pcs / roll, 4 rolls / box
Application

Alcohol & Beverage / Medicine & vaccine

Cosmetic & perfume / Detergent & reagent

Overview

Frequency Band: UHF 860-960MHz
Chip Type: Alien Higgs 10
Dimehsion: 73x 20 mm/2.87 x0.787 in
Air Interface Protoco: lISO/IEC 18000-63 Type C
Application:

Retail & Apparel

Assettracking

Smart packaging

Authentication


Technical Features

Model 5071
RFID Features
Frequency 860-960 MHz
Application Non metal
Chip Type Alien Higgs 10
Memory

Up to 128 EPC bits (nominally 96 bits)

Up to 32 User bits (with 96 bit EPC)

Data Storage >10 years
Re-write 100,000 times
Physical Features
Dimension 73x20mm/2.87x0.79 in
Material Coated Paper
Adhesive Hot Melt
Operating temperature -40℃ to 85℃/-40℉ to 185°℉
Recommended storage condition 20± 5℃, 50± 10% RH, Store away from sunlight
Other Features
Installation Adhesive on clean & dry surface
Customization Printing, Encoding, Designing, etc.
Package 2,500 pcs/roll,4 rolls/box

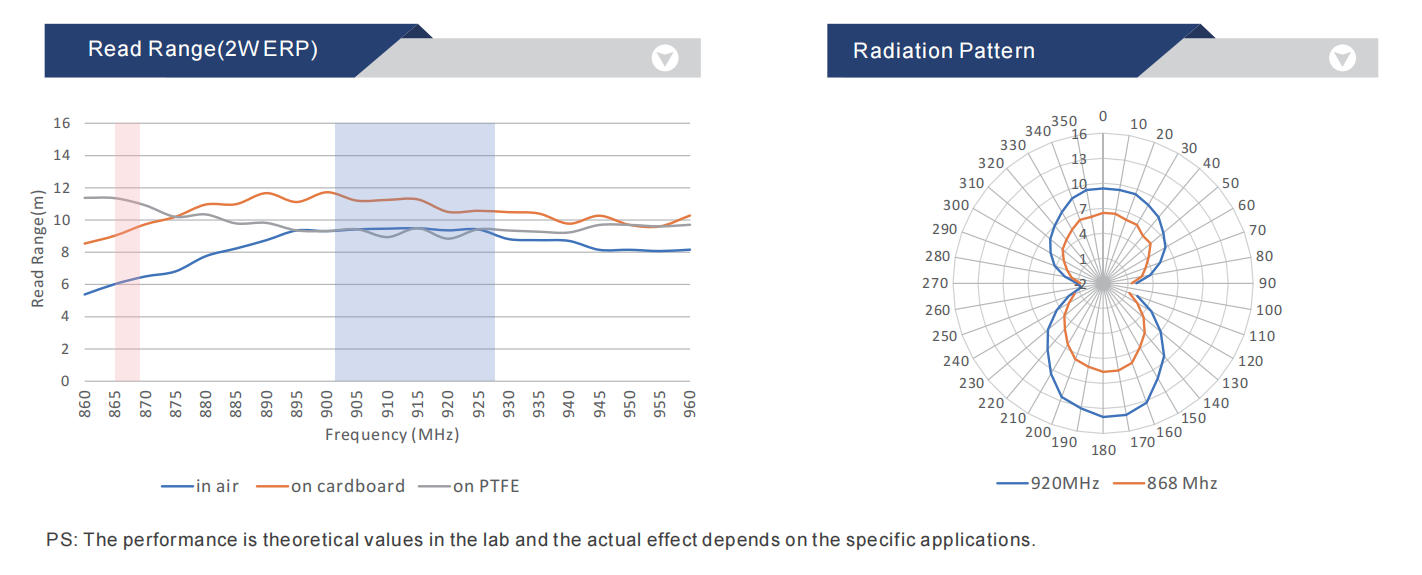

Read Range (2W ERP)
