7062 tamperproof 75 x 25 x 1 mml x w x t alien higgs 9-0

RFID Flexible On-metal Label

Home >  Products >  RFID Flexible On-metal Label

7062 (Tamperproof) 75 x 25 x 1 mm(L x W x T) Alien Higgs 9

Appurtenance:

Description

This tamperproof flexible RFID label is specially engineered for metal asset tracking and industrial identification applications. Its bendable structure allows easy installation on curved, uneven, or irregular metallic surfaces while maintaining stable and reliable read performance. Compatible with RFID printers for custom printing and chip encoding, it is an ideal solution for asset management, equipment monitoring, and anti-removal security applications.

Due to the fact that both metal and liquid are highly conductive materials that reflect or absorb UHF radio waves, they can detune nearby antennas or even completely block the signal. As a result, standard RFID labels generally perform poorly on metal surfaces or liquid-filled containers. By means of specialised antenna design and materials, Flmeta anti-metal&liquid labels could operate splendidly and reliably on metal surface and liquid-filled containers,also perform competently on non-metal and non-liquid items, though not at peak performance.

Tamper proof RFID label is a type of radio-frequency identification tag designed to prevent unauthorized access or tampering. Unlike standard RFID labels, which can be easily removed or tampered with, tamper-proof RFID labels are built with additional security features to ensure that once attached, they cannot be removed or tampered with without rendering the tag unusable. Benefits of using tamper-proof RFID labels include such as enhanced security, asset protection, improved traceability, compliance, and cost savings.

Their slim profile and availability in roll form ensure seamless compatibility with RFID printers, enabling simultaneous printing and encoding.

The self-adhesive backing and inherent flexibility further enhance their versatility, allowing for reliable application on both flat and curved surfaces. Typical use cases include asset tracking for IT equipment, electronic devices, cosmetics, beverages (both alcoholic and soft drinks), industrial components, pharmaceuticals, and ESD containers, among others.

Specifications

Physical Features Model 7062
Material PET/Aluminum Foil/Foam
Dimensions 75 x 25 x 1 mm(L x W x T)
Working Temp -40~+85℃
Survive Temp 23±3 ℃
Survival Humidity 50±15 %RH
IP Rating IP68,test for 5 hours at 1m deep water
RFID Features RFID Standard EPC C1G2 (ISO18000-6C)
Chip Type Alien Higgs 9
Memory User -688 bits; EPC - 96 bit(up to 496 bits)
Read Range(Fixed Reader) EU: 8.0 m, on metal
Read Range(Handheld Reader) EU: 4.5 m, on metal
Other Features Data Storage > 10 years
Re-write 100000 times
Installation Adhesive
Support Printer SATO CL4NX, Zebra ZT410 Silverline, Postek TX3r, etc.
Customization Logo, parcoge/QR coae, number printing, encoding, antenna design, etc.
Package Reel core inner diameter: 76.2 mm / 3" , Outside diameter < 220 mm / 8.7", 500pcs/roll.
Application

Metallic container tracking | Equipment& device tracking

Warehouse shelf Management | IT asset tracking, etc.

Highlights & Benefits

Tamper proof: Cannot be removed or tampered with without rendering the tag unusable

Superior performance on diverse surfaces: Optimized for metal, liquid-filled containers, plastic, and more.

Ready for RFID printing: Fully printable and programmable with standard RFID encoders/printers.

Flexible and conformable: Self-adhesive, thin, and flexible design ensures reliable adhesion on curved surfaces.

Durable construction: Features a waterproof PET face material for enhanced longevity.

Fully customizable: Supports bespoke design, on-demand printing, and encoding services.

Applications

Facility & equipment

Fixed asset

Electronics

Liquid container

Metal parts

Technical Features

Model 07062
RFID Features
Air Interface Protocol EPC Class 1 Gen 2/ISO 18000-63 Type C
Frequency 860-960 MHz
Chip Type Alien Higgs 9
Memory User-688 bits; EPC -96 bits(up to 496 bits)
Data Storage >10 years
Re-write 100,000 times
Read Range(2W ERP) ETSI:> 8.0m(26.3 ft), on metal
Physical Features
Dimension 75x25x1.25mm/2.95x0.98x0.05in
Face Material White PET
Operating Temperature -40℃to 85℃/-40℉ to 185℉
Survival Temperature -40Cto 120℃/-40°℉to 248°℉
Storage Condition 20± 5℃, 50± 10% RH, protect from sunshine
IP Rate IP68, test for 5 hours at 1m deep water
Other Featues
Installation Adhesive on clean & drysurface
Customization Printing, Encoding, Designing, etc.
Support Printer SATO CL4NX,Zebra ZT410 RFID Silverline and ZT411 On Metal,TSC Printronix T6000e,etc
Recommended Ribbon Resin-based
Package 400 pcs/roll, 4roll/box

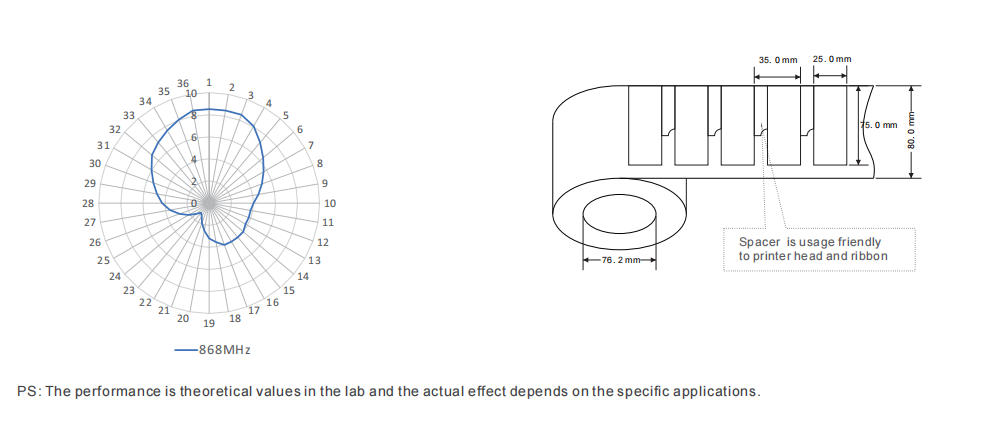

Radiation Pattern
