NXP Ucode 9XM 7063 RFID Tag

Description

The 7063 UHF flexible on-metal tag is designed for reliable RFID tracking on metallic assets and challenging industrial surfaces. Its soft and adaptable structure enables secure attachment to curved, rough, or uneven metal surfaces while delivering stable read performance in metal environments. The tag also supports RFID printer printing and data encoding, making it suitable for asset management, warehouse tracking, equipment identification, and industrial IoT applications.

This flexible label can be stuck on metallic asset easily, specially for irregular and uneven surface,it has goodperformance on metal surface, can be print and encoding by RFID printer.

Specifications

Model	7063
Material	PET/Aluminum Foil/Foam

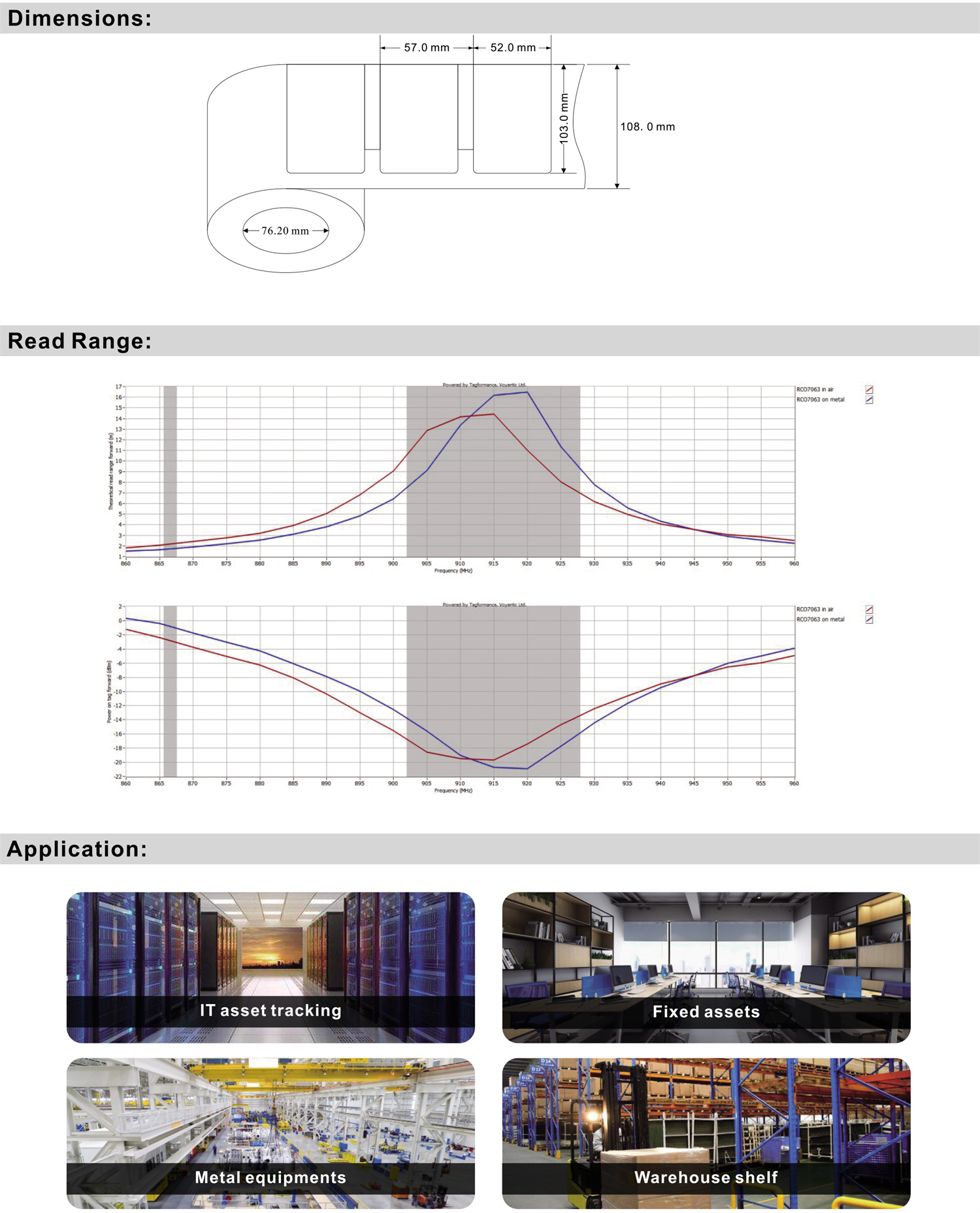

Dimensions	103 x 52 x 1 mm(L x H x W)
Working Temp	-40~+85℃
Survive Temp	23±3℃
Survival Humidity:	50±15 %RH
IP Rating	IP68,test for 5 hours at 1m deep water
RFID Standard	EPC C1G2 (ISO18000-6C)
Chip Type	NXP Ucode 9XM
Memory	① EPC- 128 bits; User - 752 bits; TID - 96 bits ② EPC- 256 bits; User - 624 bits; TID - 96 bits ③ EPC- 496 bits; User - 384 bits; TID - 96 bits
Read Range(Fixed Reader)	FCC: 16.5 m, on metal
Read Range(Handheld Reader)	FCC: 9.0 m, on metal
Data Storage	> 10 years
Re-write	100000 times
Installation	Adhesive
Support Printer	SATO CL4NX, Zebra ZT410 Silverline, Postek TX3r, etc.
Customization	Logo, parcoge/QR coae, number printing, encoding, antenna design, etc.
Package	Reel core inner diameter: 76.2 mm / 3" , Outside diameter < 220 mm / 8.7", 300pcs/roll.
Application	Metallic container tracking \| Equipment& device tracking Warehouse shelf Management \| IT asset tracking, etc.

Technical Features

Physical Features
Model:	07063
Material:	PET/Aluminum Foil/Foam
Dimensions:	103x52x1mm(LxWxT)
Working Temp:	-40~+85℃
Storage Temp:	23±3℃
Storage Humidity:	50±15%RH
IP Code:	IP68,test for 5 hours at 1m deep water
RFID Features
RFID Standard:	ISO/IEC 18000-6C(EPC Gen2)
Chip Type:	NXP Ucode 9xm
Memory:	① EPC- 128 bits; User- 752 bits; TID-96 bits ② EPC- 256 bits; User-624 bits; TID-96 bits ③ EPC- 496 bits; User - 384 bits; TID-96 bits
Read Range(Fixed Reader):	FCC: 16.5 m, on metal
Read Range(Handheld Reader):	FCC: 9.0 m, on metal
Other Features
Data Storage:	>20 years
Re-write:	100,000 times
Installation:	Adhesive
Support Printer:	SATO CL4NX, Zebra ZT410 Silverline,Postek TX3r,etc.
Customization:	Printing LOGO, Barcode, Serial number, Encoding, Designing,etc
Package:	Reel core inner diameter:76.2mm/3",Outside diameter
Application:	Metallic container tracking \| Equipment&device tracking Warehouse shelf \| Automotive components trackingIT asset tracking, etc.
