O8009 Alien Higgs 3 RFID Tag

Description

RFID ferro rugged tags are manufactured with a durable and impact-resistant protective housing, typically using industrial-grade engineering plastic to ensure reliable operation in severe industrial environments. These rugged RFID tags are designed to endure physical shock, extreme temperatures, humidity, chemical exposure, and continuous mechanical pressure, making them ideal for demanding outdoor and industrial asset tracking applications.

The series also includes specialized anti-metal RFID tag versions optimized for direct installation on metallic surfaces. A built-in anti-metal isolation layer minimizes signal interference caused by metal objects, effectively improving read stability and eliminating the signal attenuation problems commonly experienced with standard RFID tags. Equipped with high-performance RFID chips and precision antenna technology, these tags provide extended read range, strong signal consistency, and dependable performance in complex metal environments.

RFID Ferro rugged tags are housed in atough, rigid, andprotective shell-such as industrial plastic-making themsuitable for the most aggressive environments, includingphysical impacts, extreme temperatures, moisture, chemicals,and mechanical stress.

These tags include high-protection anti-metal variantsspecifically designed for attachment to metal surfaces. Aninternal anti-metal layer counteracts signal interference frommetal, solving the signal attenuation and readability issuescommon with ordinary tags in metal environments. Combinedwith high-performance chips and optimized antennas, theyachieve longer reading distances and stable performance onmetal surfaces.

Diverse types are available based on application needs,including metal-mounted, non-metal, HF (NFC), UHF, anddual-band options. Multiple installation methods aresupported, such as glue, self-adhesive, screws, rivets, and zipties. High protectionratings such as IP68 ensure reliableoperation in harsh conditions. With a variety of chip types andoperating frequencies covering both UHF and HF, these tagsare widely used in metal asset management, metal equipmentmanagement, industrial applications, warehousing, logistics,and other fields.

Specifications

RFID Features	Mdoel	P8009
	Air Interface Protocol	EPC Class 1 Gen 2 / ISO 18000-63 Type C
	Frequency	860-960 MHz
	Chip Type	Alien Higgs 3
	Memory	User - 512 bits; EPC - 96 bits; TID - 96 bits
	Data Storage	> 10 years
	Re-write	100,000 times
	Read Range(2W ERP)	FCC: > 7.0 m(23.0 ft) , on metal ETSI: > 6.2 m(20.3 ft) , on metal

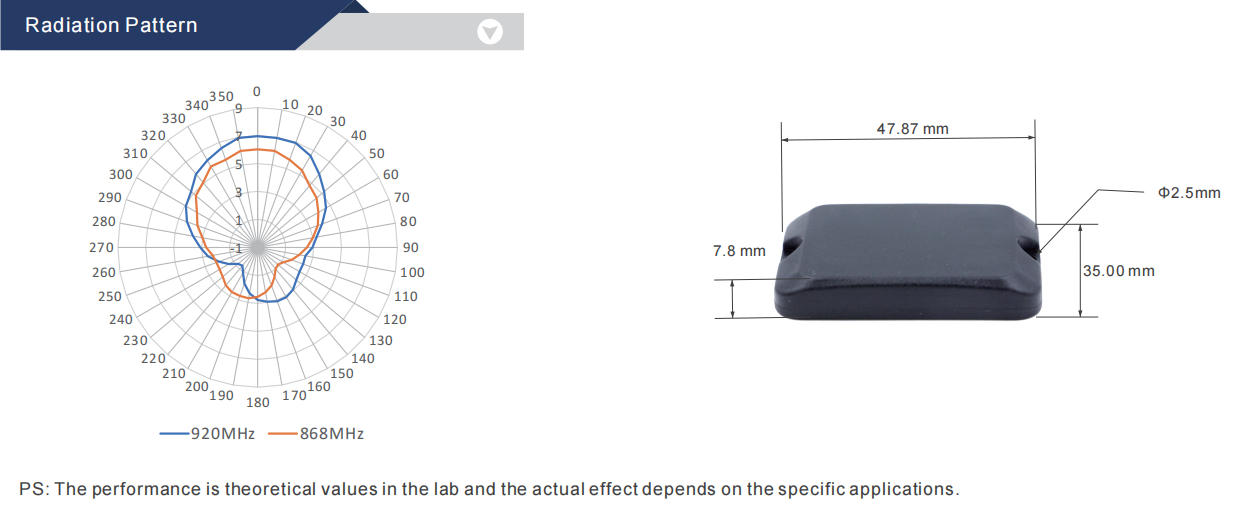

Physical Features	Dimension	47.87 x 35 x 7.8 mm / 1.88 x 1.38 x 0.31in
	Material	Ceramic
	Weight	17.6 g
	Color	Dark gray & Light gray
	Operating Temperature	-40°C to 85°C / -40°F to 185°F
	Survival Temperature	-40°C to 120°C / -40°F to 248°F
	Storage Condition	20±5℃, 50±10% RH, Store away from sunlight
	IP Rate	IP68, test for 5 hours at 1m deep water
Other Features	Installation	Adhesive(clean and dry surface), Rivet, Magnet, Screw
	Customization	Printing, Encoding, Design, etc.
	Package	50 pcs / bag, 10 bags / box
	Application	Construction & heavy equipment / Oil, gas, energy facility Automotive & aerospace fixture / Container & storage rack

Highlights & Benefits

Preeminent performance based on specific applications

Robust and durable for harsh environment

Reusable & cost-effective Long-term

Various type and installation options

Customization:design, printing, encoding, etc, available

Applications

Construction & heavy equipment

Oil, gas, energy facility

Automotive & aerospace fixture

Container & storage rack

Technical Features

Model	O8009
RFID Features
Air Interface Protocol	EPC Class 1 Gen 2/ISO 18000-63 Type C
Frequency	860-960 MHz
Chip Type	Alien Higgs 3
Memory	User-512 bits; EPC - 96 bits; TID -96 bits
Data Storage	>10 years
Re-write	100,000 times
Read Range(2W ERP)	FCC:>7.0m(23.0ft), on metal ETSI: >6.2m(20.3 ft) , on metal
Physical Features
Dimension	47.87x35x7.8mm/1.88x1.38x0.31in
Material	Ceramic
Weight	17.6g
Color	Dark gray & Light gray
Operating Temperature	-40℃ to85℃/-40°℉ to 185°℉
Survival Temperature	-40℃ to 120℃/-40°℉ to 248℉
Storage Condition	20± 5℃, 50± 10% RH, Store away from sunlight
IP Rate	IP68, test for 5 hours at 1m deep water
Other Features
Installation	Adhesive(clean and dry surface), Rivet, Magnet, Screw
Customization	Printing, Encoding, Design, etc.
Package	50 pcs/bag,10 bags/box
