This RFID tag is developed with a ceramic-based structure that enables stable operation directly on metal surfaces, overcoming the signal interference issues commonly found with standard RFID tags. Engineered for harsh industrial and outdoor environments, it maintains reliable and continuous performance even under rugged working conditions.
With excellent consistency and durability, the tag is widely used for asset tracking, equipment management, industrial manufacturing, railway systems, and automated inventory control applications. Its robust design ensures dependable RFID readability and long-term operational stability in demanding industrial scenarios.
This tag is designed on ceramic base material, solving the problem that tag can't work on the metal assetand work continuously in rugged environment. It offers consistency and reliability in outdoor and industrialapplications,suitable for assets statistics management,equipment management, industrial manufacturing.railway solution etc.

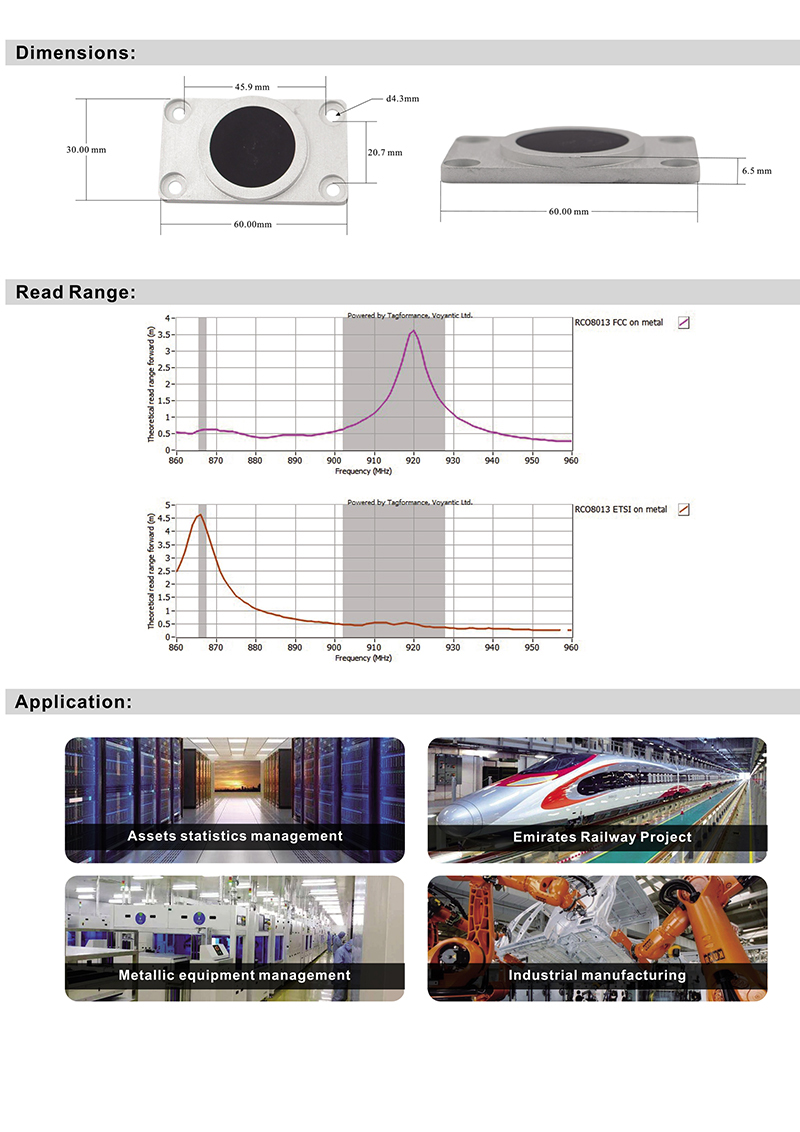

| Physical Features | Model | P8013 |
| Material | Ceramic/Epoxy/Aluminum | |
| Color | Black/Gray | |
| Dimensions | 60 x 30 x 8 mm(L x W x T) | |
| Weight | 50 g | |
| Working Temp | -40~+85℃ | |
| Survive Temp | -40~+150℃ | |
| IP Code | IP68 | |
| Humidity | 98% Non-condensing | |
| RFID Features | RFID Standard | EPC C1G2 (ISO18000-6C) |
| Chip Type | Alien Higgs 3 | |
| Memory | User -512 bits; EPC - 96 bits; TID - 32 bits | |
| Read Range(Fixed Reader FCC) | 3.5 m, on metal | |
| Read Range(Fixed Reader ETSI) | 4.5 m, on metal | |
| Other Features | Data Storage | > 10 years |
| Re-write | 100000 times | |
| Installation | 3M adhesive, Rivet, Magnet, Screw | |
| Customization | Printing LOGO, Barcode, Serial number, Encoding, Designing,etc | |
| Application | Assets statistics management | Emirates Railway Project Metallic equipment management | Industrial manufacturing, etc |
| Model: | O8013 |
| Material: | Ceramic/Epoxy/Aluminum |
| Color: | Black/Gray |
| Dimensions: | 60x30x8mm(LxWxT) |
| Weight: | 50g |
| Working Temp: | -40~+85℃ |
| Storage Temp: | -40~+250℃ |
| IP Code: | IP68 |
| Humidity: | 98% Non-condensing |
| RFID Features: | |
| RFID Standard: | ISO/IEC 18000-6C(EPC Gen2) |
| Chip Type: | Alien Higgs-3 |
| Memory: | User-512 bits; EPC - 96 bits; TID-32 bits |
| Read Range(Fixed Reader ): | FCC:3.5 m, on metal; ETSI: 4.5 m, on metal |
| Other Features: | |
| Data Storage: | >10 years |
| Re-write: | 100,000 times |
| Installation: | 3M adhesive,Screw |
| Customization: | Printing LOGO, Barcode, Encoding,Designing,etc |
| Package: | Package Packed with sponge tray, 50pcs/tray |
| Application: |
· Assets statistics management · Emirates Railway Project · Metallic equipment management · Industrial manufacturing, etc |
