O8019 RFID Tag NXP Ucode 9xm

Description

RFID ferro rugged tags are built with a reinforced protective casing made from industrial-grade materials, enabling dependable performance in harsh and high-impact environments. These durable RFID tags are designed to resist vibration, physical shock, extreme temperatures, moisture, chemicals, and heavy mechanical stress, making them suitable for demanding industrial, logistics, and outdoor asset management applications.

The tags are also available in advanced anti-metal versions specifically developed for use on metal surfaces. An integrated anti-metal shielding structure reduces signal interference caused by metallic objects, helping to eliminate common readability and signal attenuation issues associated with standard RFID tags. Combined with optimized antenna engineering and high-performance RFID chips, the tags provide enhanced read range, stable signal transmission, and reliable performance in complex metal environments.

Specifications

RFID Features	Mdoel	O8019
	Air Interface Protocol	EPC Class 1 Gen 2 / ISO 18000-63 Type C
	Frequency	860-960 MHz
	Chip Type	NXP Ucode 9xm
	Memory	3 Customer Configurable Memory ① User - 752 bits; EPC - 128 bits; TID - 96 bits ② User - 624bits; EPC - 256 bits; TID - 96 bits ③ User - 384 bits; EPC - 496 bits; TID - 96 bits
	Data Storage	> 10 years
	Re-write	100,000 times
	Read Range(2W ERP)	FCC: > 23.6 m(77.4 ft) , on metal ETSI: > 22.7 m(74.5 ft) , on metal

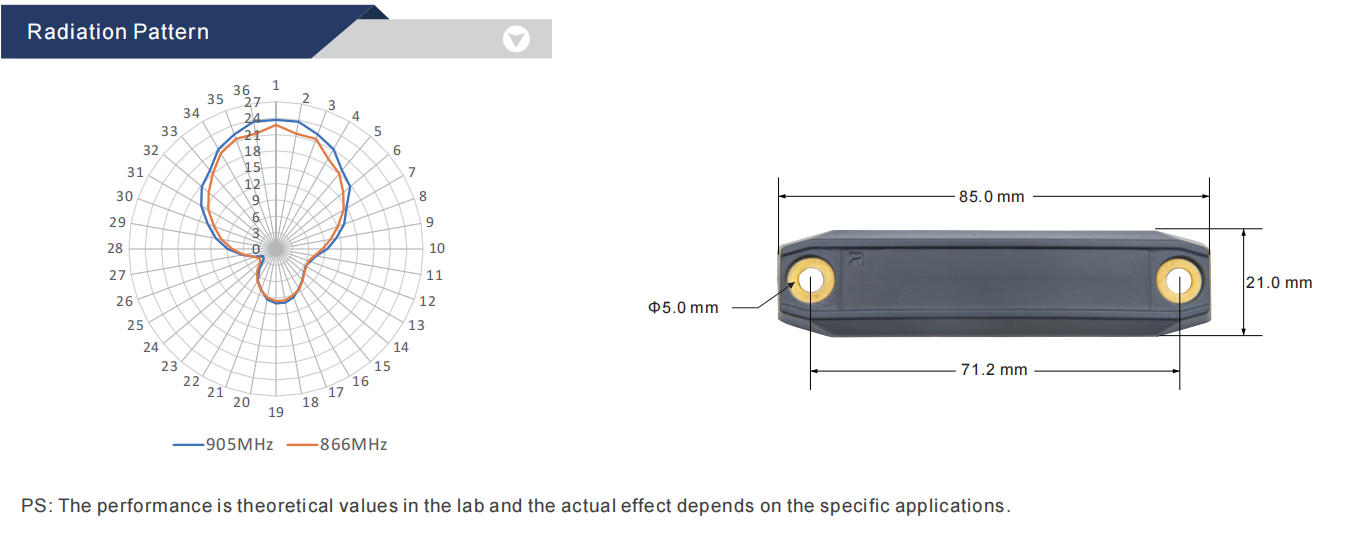

Physical Features	Dimension	85 x 21 x 10 mm / 3.35 x 0.83 x 0.39 in
	Material	Engineering Plastics
	Weight	9.8 g
	Color	Gray or Customization
	Operating Temperature	-40°C to 85°C / -40°F to 185°F
	Survival Temperature	-40°C to 120°C / -40°F to 248°F
	Storage Condition	20±5℃, 50±10% RH, Store away from sunlight
	IP Rate	IP68, test for 5 hours at 1m deep water
Other Features	Installation	Adhesive(clean and dry surface), Rivet, Magnet, Screw
	Customization	Printing, Encoding, Design, etc.
	Package	100 pcs / bag, 10 bags / box
	Application	Construction & heavy equipment / Oil, gas, energy facility Automotive & aerospace fixture / Container & storage rack

Highlights & Benefits

Preeminent performance based on specific applications

Robust and durable for harsh environment

Reusable & cost-effective Long-term

Various type and installation options

Customization: design, printing, encoding, etc, available

Applications

Construction & heavy equipment

Oil, gas, energy facility

Automotive & aerospace fixture

Container & storage rack

Technical Features

Model	O8019
RFID Features
Air Interface Protocol	EPC Class 1 Gen 2/ ISO 18000-63 Type C
Frequency	860-960 MHz
Chip Type	NXP Ucode 9xm
Memory	3 Customer Configurable Memory ① User- 752 bits; EPC- 128 bits; TID - 96 bits ② User- 624bits; EPC -256 bits; TID-96 bits ③User - 384 bits; EPC - 496 bits; TID- 96 bits
Data Storage	>10 years
Re-write	100,000 times
Read Range(2W ERP)	FCC:>23.6m(77.4ft), on metal ETSI:> 22.7 m(74.5ft), on metal
Physical Features
Dimension	85x21x10mm/3.35x0.83x0.39 in
Material	Engineering Plastics
Weight	9.8g
Color	Gray or Customization
Operating Temperature	-40℃ to 85℃/-40°℉ to 185℉
Survival Temperature	-40℃ to 120℃/-40°F to 248F
Storage Condition	20± 5℃, 50± 10% RH, Store away from sunlight
IP Rate	IP68, test for 5 hours at 1m deep water
Other Features
Installation	Adhesive(clean and dry surface), Rivet, Magnet, Screw
Customization	Printing, Encoding, Design, etc.
Package	100 pcs/bag,10 bags/box
