O8016 136 x 43 x 10.3 mm RFID Tag

Description

RFID ferro rugged tags are engineered with a heavy-duty protective enclosure made from durable industrial materials, allowing reliable operation in extremely demanding environments. These rugged RFID tags are resistant to impact, temperature fluctuations, humidity, chemical exposure, and continuous mechanical stress, making them ideal for industrial asset tracking, warehouse management, and outdoor applications.

To ensure reliable performance on metallic objects, the tags are equipped with specialized anti-metal technology optimized for direct installation on metal surfaces. A built-in isolation layer helps minimize RF interference generated by metal, effectively improving signal strength and read accuracy compared with conventional RFID tags. Together with high-performance RFID chips and precision-tuned antennas, the tags provide stable readability, longer read distance, and dependable operation in complex industrial environments.

RFID Ferro rugged tags are housed in a tough, rigid, andprotective shell-such as industrial plastic-making themsuitable for the most aggressive environments, includingphysical impacts, extreme temperatures, moisture, chemicals,and mechanical stress.

These tags include high-protection anti-metal variantsspecifically designed for attachmentto metal surfaces. Aninternal anti-metal layer counteracts signal interference frommetal, solving the signal attenuation and readability issuescommon with ordinary tags in metal environments. Combinedwith high-performance chips and optimized antennas, theyachieve longerreading distances and stable performance onmetal surfaces.

Diverse types are available based on applicationneeds,including metal-mounted, non-metal, HF (NFC), UHF, anddual-band options. Multiple installation methods aresupported, such as glue, self-adhesive, screws, rivets, and zipties. High protectionratings such as IP68 ensure reliableoperation in harsh conditions. With a variety of chip types andoperating frequencies covering both UHF and HF, these tagsare widely used in metal asset management, metal equipmentmanagement, industrial applications, warehousing, logistics,and other fields.

Specifications

RFID Features	Mdoel	O8016
	Air Interface Protocol	EPC Class 1 Gen 2 / ISO 18000-63 Type C
	Frequency	860-960 MHz
	Chip Type	impinj Monza 4QT
	Memory	User - 512 bits; EPC - 128 bits; TID - 96 bits
	Data Storage	> 10 years
	Re-write	100,000 times
	Read Range(2W ERP)	FCC: > 21.0 m(68.9 ft) , on metal ETSI: > 19.0 m(62.3 ft) , on metal
Physical Features	Dimension	136 x 43 x 10.3 mm / 5.35 x 1.69 x 0.41 in
	Material	Engineering Plastics
	Weight	42.8 g
	Color	Gray or Customization
	Operating Temperature	-40°C to 85°C / -40°F to 185°F
	Survival Temperature	-40°C to 120°C / -40°F to 248°F
	Storage Condition	20±5℃, 50±10% RH, Store away from sunlight
	IP Rate	IP68, test for 5 hours at 1m deep water
Other Features	Installation	Adhesive(clean and dry surface), Rivet, Magnet, Screw
	Customization	Printing, Encoding, Design, etc.
	Package	400 pcs / bag, 8 bags / box
	Application	Construction & heavy equipment / Oil, gas, energy facility Automotive & aerospace fixture / Container & storage rack

Highlights & Benefits

Preeminent performance based on specific applications

Robust and durable for harsh environment

Reusable & cost-effective Long-term

Various type and installation options

Customization: design, printing, encoding, etc, available

Applications

Construction & heavy equipment

Oil, gas, energy facility

Automotive & aerospace fixture

Container & storage rack

Technical Features

Model	O8016
RFID Features
Air Interface Protocol	EPC Class 1 Gen 2/ ISO 18000-63 Type C
Frequency	860-960 MHz
Chip Type	impinj Monza 4QT
Memory	User-512 bits; EPC - 128 bits; TID -96 bits
Data Storage	>10 years
Re-write	100,000 times
Read Range(2W ERP)	FCC: > 21.0m(68.9 ft),on metal ETSI:>19.0m(62.3ft), on metal
Physical Features

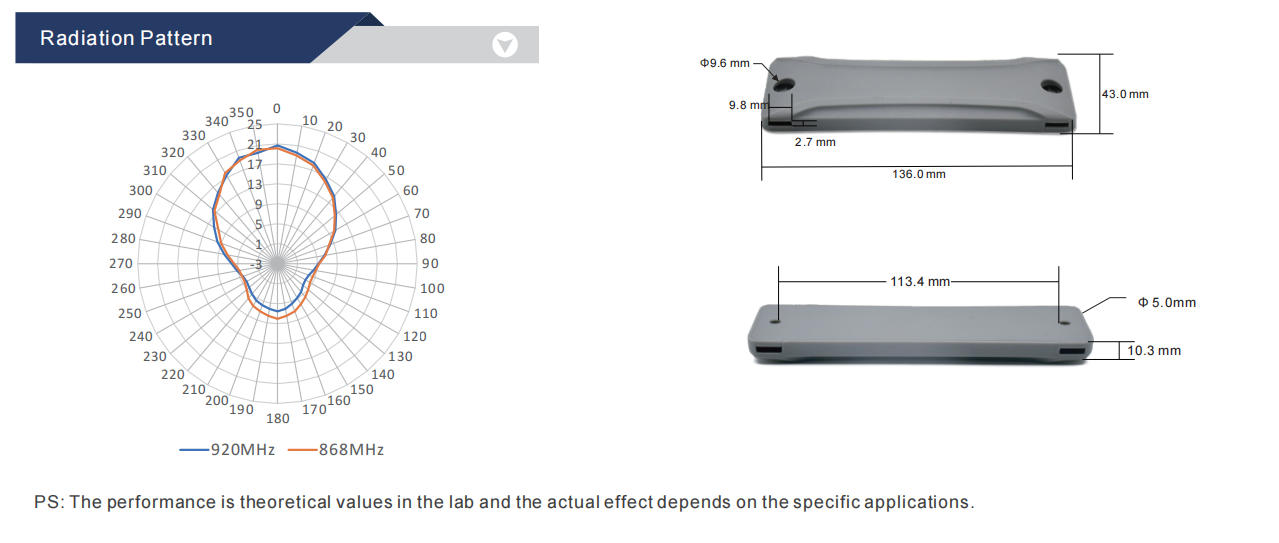

Dimension	136x43x10.3mm/5.35x1.69x0.41 in
Material	Engineering Plastics
Weight	42.8g
Color	Gray or Customization
Operating Temperature	-40℃ to 85°℃/-40°℉ to 185°℉
Survival Temperature	-40℃ to 120℃/-40°℉ to 248°℉
Storage Condition	20± 5℃, 50± 10% RH, Store away from sunlight
IP Rate	IP68, test for 5 hours at 1m deep water
Other Features
Installation	Adhesive(clean and dry surface), Rivet, Magnet, Screw
Customization	Printing,Encoding,Design,etc.
Package	40 pcs/bag,8 bags/box
