7067 Tamperproof Tag

Description

The 7067 tamperproof RFID label is engineered for secure tracking and identification of metallic assets in demanding environments. Its flexible construction allows easy attachment to curved, rough, or uneven metal surfaces while ensuring consistent on-metal reading performance. Designed with tamper-evident functionality, the label supports RFID printer printing and encoding, making it an ideal solution for asset management, industrial equipment tracking, anti-removal applications, and smart logistics systems.

Due to the fact that both metal and liquid are highly conductivematerials that reflect or absorb UHF radio waves, they can detunenearby antennas or even completely block the signal.As a result,standard RFID labels generally perform poorly on metal surfaces orliquid-filled containers.

By means ofspecialised antenna design and materials,FImeta anti-metal&liquid labels could operate splendidly andreliably on metal surface and liquid-filled containers,also performcompetently on non-metal and non-liquid items, though not at peakpe rformance.

Tamper proof RFID label is a type of radio-frequencyidentificationtag designed to prevent unauthorized access or tampering. Unlikestandard RFID labels, which can be easily removed or tamperedwith, tamper-proof RFID labels are built with additional securityfeatures to ensure that once attached, they cannot be removed ortampered with without rendering the tag unusa ble. Benefits ofusing tamper-proof RFIDlabels include such as enhanced security,asset protection, improved traceability, compliance, and costsavings

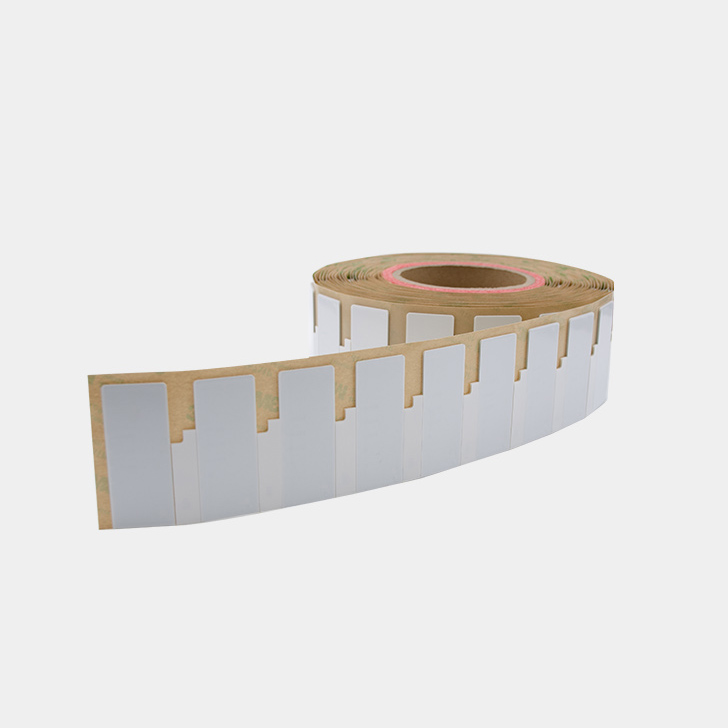

Their slim profile and availability in roll form ensure seamlesscompatibility with RFID printers, enabling simultaneous printingand encoding.

The self-adhesive backing and inherent flexibility further enhan cetheir versatility, allowing for reliable application on both flat andcurved surfaces. Typical use cases include asset tracking for ITequipment, electronic devices,cosmetics, beverages (bothalcoholic and soft drinks), industrial components, pharmaceuticals.and E SD containers, among others.

Specifications

Physical Features	Model	7067
	Material	PET/Aluminum Foil/Foam
	Dimensions	60 x 25 x 1 mm(L x W x T)
	Working Temp	-40~+85℃
	Survive Temp	23±3 ℃
	Survival Humidity	50±15 %RH
	IP Rating	IP68,test for 5 hours at 1m deep water
RFID Features	RFID Standard	EPC C1G2 (ISO18000-6C)
	Chip Type	NXP Ucode 9xe
	Memory	User -N/A; EPC - 128 bits; TID - 96 bits
	Read Range(Fixed Reader)	FCC: 3.8 m, onmetal
	Read Range(Fixed Reader)	ETSI: 3.8 m, onmetal
Other Features	Data Storage	> 10 years
	Re-write	100000 times
	Installation	Adhesive
	Support Printer	SATO CL4NX, Zebra ZT410 Silverline, Postek TX3r, etc.
	Customization	Logo, parcoge/QR coae, number printing, encoding, antenna design, etc.

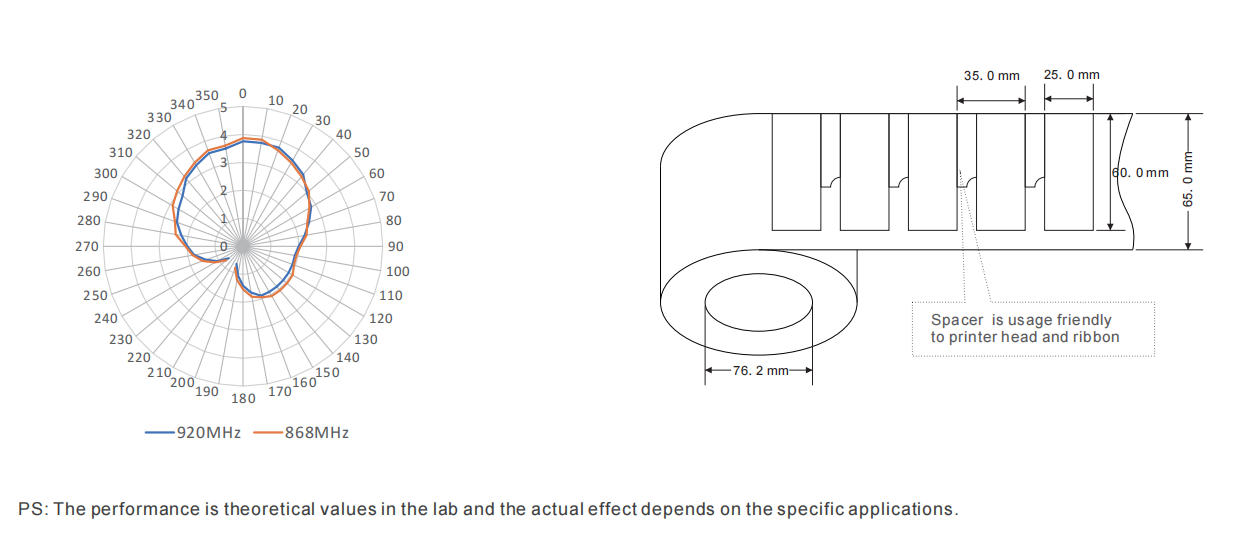

	Package	Reel core inner diameter: 76.2 mm / 3" , Outside diameter < 220 mm / 8.7", 500pcs/roll.
	Application	Metallic container tracking \| Equipment& device tracking Warehouse shelf Management \| IT asset tracking, etc.

Highlights & Benefits

Tamper proof: Cannot be removed ortampered with without re ndering the tagunusable

Superior performance on diverse surfaces:Optimized for metal, liquid-filled containers,plastic,and more.

Ready for RFID printing: Fully printable andprogramma ble with stand ard RFIDencoders/printers.

Flexible and conformable: Self-adhesive,thin, and flexible design ensures reliableadhesion on curved surfaces.

Durable construction:Features a waterproofPET face material for enhanced longevity.

Fully customizable: Supports bespoke design,on-demand printing, and encoding services.

Applications

Facility & equipment

Fixed asset

Electronics

Liquid container

Metal parts

Technical Features

Model	O7067
RFID Features
Air Interface Protocol	EPC Class 1 Gen 2/ ISO 18000-63 Type C
Frequency	860-960 MHz
Chip Type	NXP Ucode 9xe
Memory	User - N/A; EPC - 128 bits; TID- 96 bits
Data Storage	>10years
Re-write	100,000 times
Read Range(2W ERP)	FCC: > 3.8 m(12.5 ft), on metalETSI: >3.8 m(12.5 ft),on metal
Physical Features
Dimension	60x25x1.25 mm/2.36x0.98x0.05 in
Face Material	White PET
Operating Temperature	-40℃ to 85℃/-40°℉ to 185℉
Survival Temperature	-40℃to 120℃/-40F to 248°F
Storage Condition	20±5℃,50±10% RH,protect from sunshine
IP Rate	IP68,test for 5 hours at 1m deep water
Other Features
Installation	Adhesive on clean & dry surface
Customization	Printing,Encoding, Designing,etc.
Support Printer	SATO CL4NX,Zebra ZT410 RFID Silverline and ZT411 On Metal,TSC Printronix T6000e,etc
Recommended Ribbon	Resin-based
Package	500 pcs / roll, 4 roll/box
