NXP Ucode 8 5020 43 x 18 mm

Description

The 5020 UHF RFID Inlay and Label series is designed for high-efficiency identification and tracking applications across logistics, retail, inventory control, and asset management industries. Available in both dry inlay and wet inlay formats, these RFID solutions offer flexible integration for different production and labeling requirements.

Dry inlays are constructed with antenna, RFID chip, and PET substrate without adhesive backing, making them suitable for further converting and lamination processes. Wet inlays include an additional adhesive layer and release liner, allowing direct application onto products or packaging without extra processing.

Compared with wet inlays, RFID labels feature an extra printable surface layer, which can be customized with coated paper, PET, or fragile material according to different application environments and branding needs. Various sizes and specifications are available to support customized RFID projects.

Compliant with EPC Class 1 Gen 2 (EPC C1G2) and ISO18000-6C standards, the label operates at 860–960 MHz and delivers reliable UHF RFID performance for supply chain management, warehouse tracking, baggage handling, retail inventory systems, and smart asset monitoring.

Normal RFID label couldn't used for liquid. This labelis specially designed for anti-liquid application,suchas water,drink,alcohol,cosmetics,perfume,blood bag,etc.It is complaint with EPC C1G2 (ISO18000-6C)standard, operating frequency is 860 960MHz (It can be used worldwide).Each tag has a unique ID andstores user data.

Specifications

Physical Features	Model	5020
	Label Size	43 x 18 mm(customized)
	Material	PET
	Working Temp	-40~+85℃
	Storage Temp	23±3 ℃
	Storage Humidity:	50±15 %RH
RFID Features	RFID Standard	EPC C1G2 (ISO18000-6C)
	Chip Type	NXP Ucode 8
	Memory	U8:User - N/A; EPC - 128 bits; TID - 96 bits; Access Passwords - 32 bits

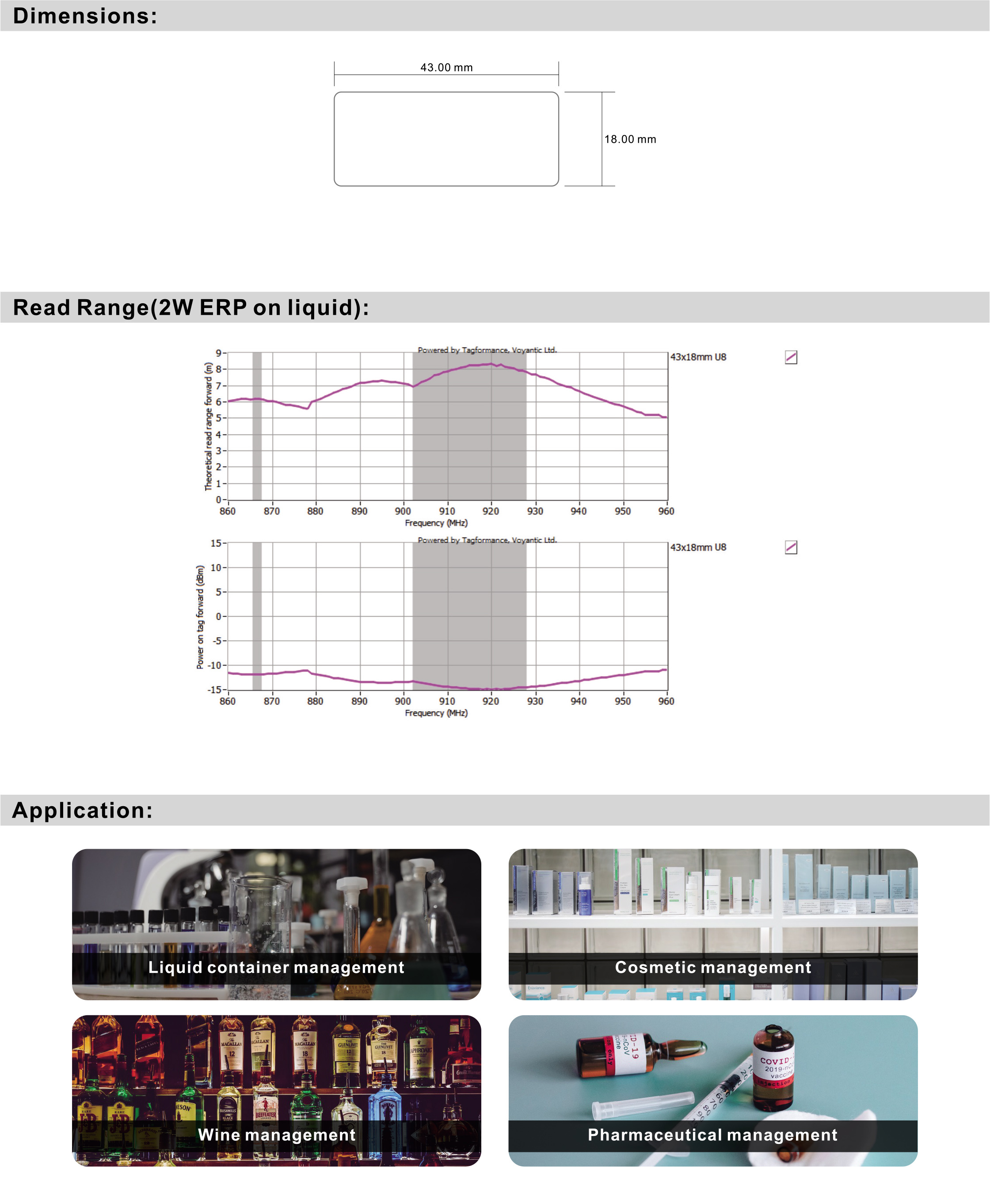

	Read Range(Fixed Reader)	8.0 m, on liquid
Other Features	Data Storage	> 10 years
	Re-write	100000 times
	Customization	Printing LOGO, Barcode, Serial number, Encoding, Designing,etc
	Package	Reel core inner dimension: 76.2mm / 3(in), Outside diameter < 220 mm / 8.7(in),1000-5000pcs/roll, 4 rolls /carton
	Application	Liquid container management \| Cosmetic management Wine management \| Pharmaceutical management, etc.

Technical Features

Model:	5020
Material:	PET
Dimensions:	43x 18 mm(customized)
Working Temp:	-40~+85℃
Storage Temp:	23±3℃
Storage Humidity:	50±15%RH
IP Code:	IP68,test for 5 hours at 1m deep water
RFID Features:
RFID Standard:	ISO/IEC 18000-6C(EPC Gen2)
Chip Type:	NXP UCode 8
Memory:	User- N/A; EPC - 128 bits; TID-96 bits
Read Range(Fixed Reader):	8.0 m, on liquid
Other Features:
Data Storage:	>10 years
Re-write:	100,000 times
Installation:	Adhesive
Support Printer:	SATO CL4NX,Zebra ZT410 Silverline, Postek TX3r, etc.
Customization:	Printing LOGO, Barcode, Serial number, Encoding, Designing,etc
Package:	Reel core inner diameter: 76.2 mm /3" Outside diameter < 220 mm /8.7", 1000-5000 pcs/roll.
Application:	· Liquid container management · Cosmetic management · Wine management · Pharmaceutical management, etc.
