C8009 Alien Higgs 3 RFID Tag

Description

The C8009 ferro rugged tag is built with a reinforced protective housing, typically made from industrial-grade plastic, making it suitable for extremely harsh operating environments. It is designed to withstand physical impact, high and low temperatures, humidity, chemical exposure, and continuous mechanical stress, ensuring reliable performance in demanding industrial applications.

This series also features an advanced anti-metal structure specifically engineered for metal surface attachment. An internal shielding layer effectively reduces electromagnetic interference caused by metal, solving common RFID signal loss and readability issues found in standard tags. Combined with high-performance RFID chips and optimized antenna design, the tag delivers extended reading distance, strong signal stability, and consistent performance on metal assets.

RFID Ferro rugged tags are housed in a tough, rigid, andprotective shell-such as industrialplastic-making themsuitable for the most aggressive environments, includingphysical impacts, extreme temperatures, moisture, chemicals,and mechanical stress.

These tags include high-protection anti-metal variantsspecifically designed for attachment to metal surfaces. Aninternal anti-metal layer counteracts signal interference frommetal, solving the signal attenuation and readability issuescommon with ordinary tags in metal environments. Combinedwith high-performance chips and optimized antennas, theyachieve longer reading distances and stable performance onmetal surfaces

Diverse types are available based on application needs,including metal-mounted, non-metal, HF (NFC), UHF, anddual-band options. Multiple installation methods aresupported, such as glue, self-adhesive, screws, rivets, and zipties. High protection ratings such as IP68 ensure reliableoperation in harsh conditions. With a variety of chip types andoperating frequencies covering both UHF and HF, these tagsare widely used in metal asset management, metal equipmentmanagement, industrial applications, warehousing, logistics,and other fields.

Specifications

RFID Features	Mdoel	C8009
	Air Interface Protocol	EPC Class 1 Gen 2 / ISO 18000-63 Type C
	Frequency	860-960 MHz
	Chip Type	Alien Higgs 3
	Memory	User - 512 bits; EPC - 96 bits; TID - 96 bits
	Data Storage	> 10 years
	Re-write	100,000 times
	Read Range(2W ERP)	FCC: > 7.0 m(23.0 ft) , on metal ETSI: > 6.2 m(20.3 ft) , on metal

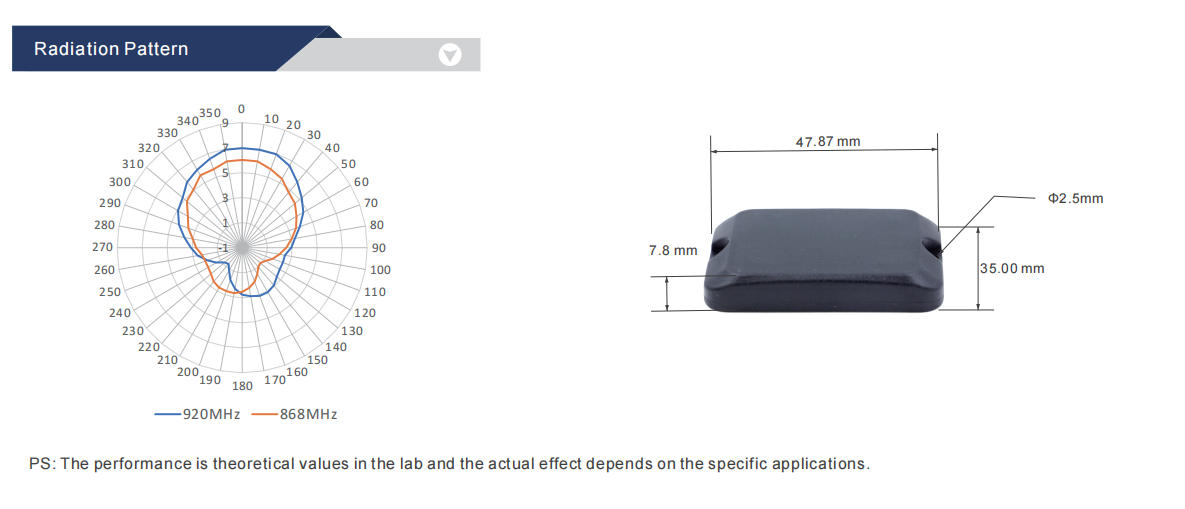

Physical Features	Dimension	47.87 x 35 x 7.8 mm / 1.88 x 1.38 x 0.31in
	Material	Ceramic
	Weight	17.6 g
	Color	Dark gray & Light gray
	Operating Temperature	-40°C to 85°C / -40°F to 185°F
	Survival Temperature	-40°C to 120°C / -40°F to 248°F
	Storage Condition	20±5℃, 50±10% RH, Store away from sunlight
	IP Rate	IP68, test for 5 hours at 1m deep water
Other Features	Installation	Adhesive(clean and dry surface), Rivet, Magnet, Screw
	Customization	Printing, Encoding, Design, etc.
	Package	50 pcs / bag, 10 bags / box
	Application	Construction & heavy equipment / Oil, gas, energy facility Automotive & aerospace fixture / Container & storage rack

Highlights & Benefits

Preeminent performance based on specific applications

Robust and durable for harsh environment

Reusable & cost-effective Long-term

Various type and installation options

Customization: design, printing, encoding, etc, available

Applications

Construction & heavy equipment

Oil, gas, energy facility

Automotive & aerospace fixture

Container & storage rack

Technical Features

Model	C8009
RFID Features
Air Interface Protocol	EPC Class 1 Gen 2/ISO 18000-63 Type C
Frequency	860-960 MHz
Chip Type	Alien Higgs 3
Memory	User-512 bits; EPC-96 bits; TID-96 bits
Data Storage	> 10 years
Re-write	100,000 times
Read Range(2W ERP)	FCC: >7.0m(23.0 ft),on metal ETSI: >6.2 m(20.3 ft), on metal
Physical Features
Dimension	47.87x35x7.8mm/1.88x1.38x0.31in
Material	Ceramic
Weight	17.6g
Color	Dark gray & Light gray
Operating Temperature	-40℃ to 85℃ /-40°℉ to 185°℉
Survival Temperature	-40℃ to 120℃/-40°℉ to 248°℉
Storage Condition	20±5℃, 50± 10% RH, Store away from sunlight
IP Rate	IP68, test for 5 hours at 1m deep water
Other Features
Installation	Adhesive(clean and dry surface), Rivet, Magnet, Screw
Customization	Printing, Encoding, Design, etc.
Package	50 pcs/bag,10 bags/box
