O8011 128 x 30 x 8.5 mm NXP Ucode 8

Description

RFID ferro rugged tags are engineered with a strong and durable protective enclosure, using industrial-grade materials that allow reliable operation in harsh and demanding environments. These rugged RFID tags are built to resist heavy impact, temperature fluctuations, moisture, chemical exposure, and long-term mechanical stress, making them highly suitable for industrial asset tracking and outdoor identification applications.

To ensure stable performance on metallic assets, the tags are available in specialized anti-metal versions designed specifically for metal surface mounting. An integrated anti-interference layer helps reduce the signal disruption typically caused by metal, significantly improving readability and RF performance compared to conventional RFID tags. Paired with advanced RFID chips and optimized antenna architecture, the tags provide long reading distance, stable signal transmission, and dependable performance in complex industrial environments.

RFID Ferro rugged tags arehoused in a tough, rigid, andprotective shell-such as industrialplastic-making themsuitable for the most aggressive environments, includingphysical impacts, extreme temperatures, moisture, chemicals,and mechanical stress.

These tags include high-protectionanti-metal variantsspecifically designed for attachment to metal surfaces. Aninternal anti-metal layer counteracts signal interference frommetal, solving the signal attenuation and readability issuescommon with ordinary tags in metal environments. Combinedwith high-performance chips and optimized antennas, theyachieve longer reading distances and stable performance onmetal surfaces.

Diverse types are available based on application needsincluding metal-mounted, non-metal, HF (NFC), UHF, anddual-band options. Multiple installation methods aresupported, such as glue, self-adhesive, screws, rivets, and zipties. High protection ratings such as IP68 ensure reliableoperation in harsh conditions. With a variety of chip types andoperating frequencies covering both UHF and HF, these tagsare widely used in metal asset management, metal equipmentmanagement, industrial applications, warehousing, logistics,and other fields.

Specifications

RFID Features	Mdoel	P8011
	Air Interface Protocol	EPC Class 1 Gen 2 / ISO 18000-63 Type C
	Frequency	860-960 MHz
	Chip Type	NXP Ucode 8
	Memory	User - N/A; EPC - 128 bits; TID - 96 bits
	Data Storage	> 10 years
	Re-write	100,000 times
	Read Range(2W ERP)	FCC: > 27.3 m(89.6 ft) , on metal ETSI: > 26.5 m(86.9 ft) , on metal

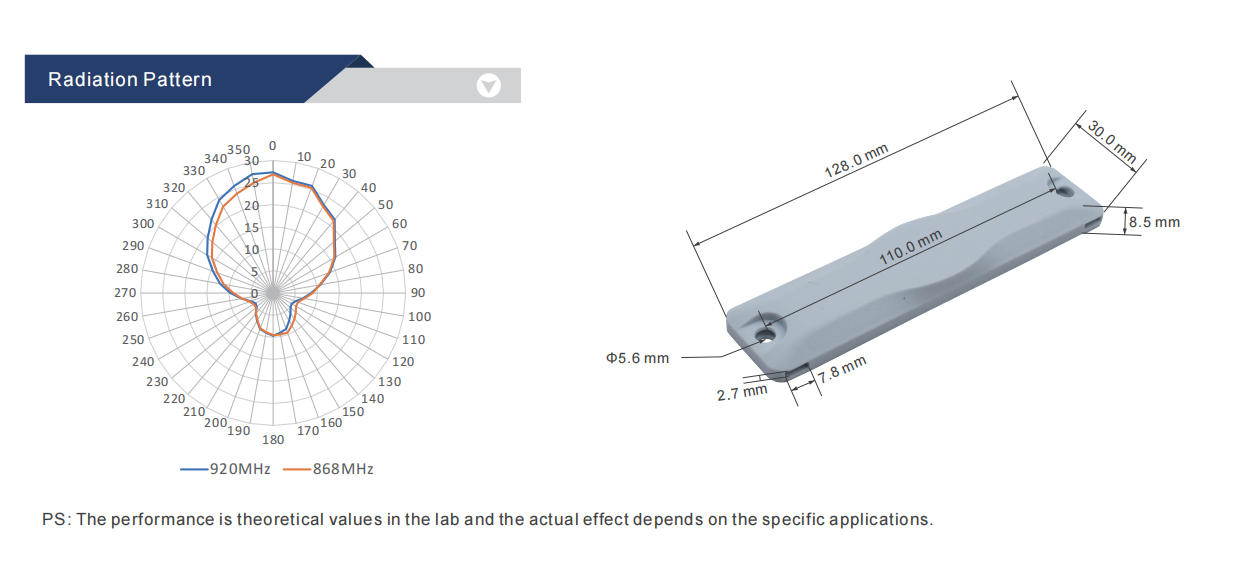

Physical Features	Dimension	128 x 30 x 8.5 mm / 5.04 x 1.18 x 0.34 in
	Material	Engineering Plastics
	Weight	18.2 g
	Color	Light Blue
	Operating Temperature	-40°C to 85°C / -40°F to 185°F
	Survival Temperature	-40°C to 120°C / -40°F to 248°F
	Storage Condition	20±5℃, 50±10% RH, Store away from sunlight
	IP Rate	IP68, test for 5 hours at 1m deep water
Other Features	Installation	Adhesive(clean and dry surface), Rivet, Magnet, Screw
	Customization	Printing, Encoding, Design, etc.
	Package	50 pcs / bag, 10 bags / box
	Application	Construction & heavy equipment / Oil, gas, energy facility Automotive & aerospace fixture / Container & storage rack

Highlights & Benefits

Preeminent performance based on specific applications

Robust and durable for harsh environment

Reusable & cost-effective Long-term

Various type and installation options

Customization: design, printing, encoding, etc, available

Applications

Construction & heavy equipment

Oil, gas, energy facility

Automotive & aerospace fixture

Container & storage rack

Technical Features

Model	O8011
RFID Features
Air Interface Protocol	EPC Class 1 Gen 2 / ISO 18000-63 Type C
Frequency	860-960 MHz
Chip Type	NXP Ucode 8
Memory	User - N/A; EPC - 128 bits; TID -96 bits
Data Storage	>10 years
Re-write	100,000 times
Read Range(2W ERP)	FCC: >27.3 m(89.6 ft),on metal ETSI:>26.5 m(86.9 ft), on metal
Physical Features
Dimension	128x30x8.5mm/5.04x1.18x0.34 in
Material	Engineering Plastics
Weight	18.2g
Color	Light Blue
Operating Temperature	-40℃ to 85℃/-40°℉ to 185°F
Survival Temperature	-40℃ to 120℃/-40°℉ to 248°F
Storage Condition	20± 5℃, 50± 10% RH, Store away from sunlight
IP Rate	IP68,test for 5 hours at 1m deep water
Other Features
Installation	Adhesive(clean and dry surface), Rivet, Magnet, Screw
Customization	Printing, Encoding, Design, etc.
Package	50 pcs/bag,10 bags/box
