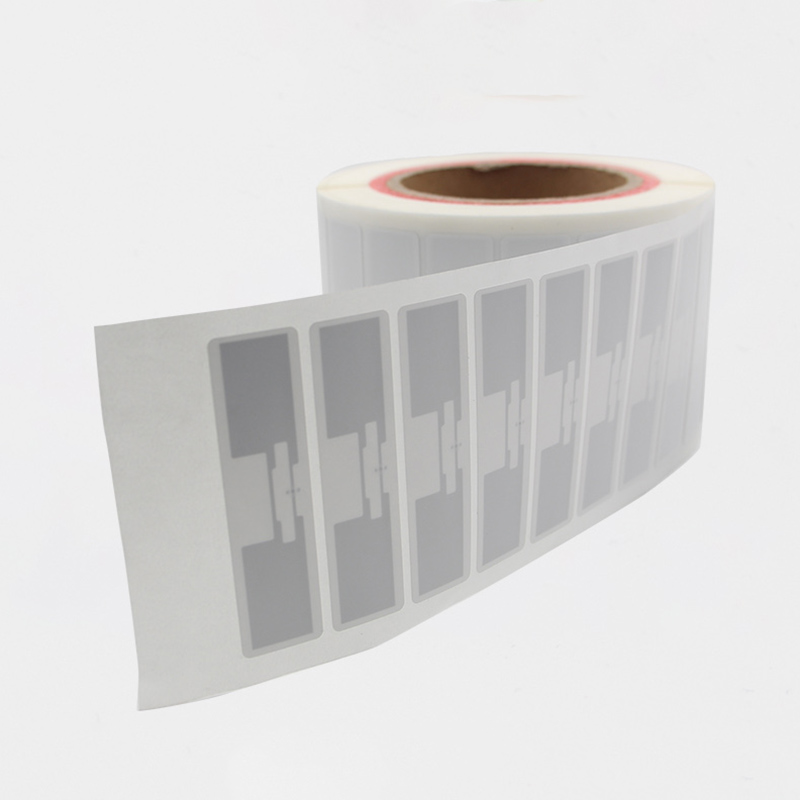

5031 NXP Ucode 8/9 RFID Tag

Description

The 5031 UHF RFID Inlay and Label is engineered for efficient tracking and identification applications in retail, logistics, warehouse management, and smart inventory systems. Available in both dry inlay and wet inlay configurations, this RFID solution offers flexible integration for different manufacturing and labeling requirements.

The dry inlay structure consists of an RFID chip, antenna, and PET substrate without adhesive backing, making it suitable for further converting or embedding processes. The wet inlay version includes adhesive and release liner layers, enabling direct application onto cartons, products, or packaging materials.

For customized labeling applications, an additional printable face layer can be added on top of the wet inlay. Surface materials such as coated paper, PET, or fragile paper are available to meet different environmental and branding requirements. Custom sizes, printing, and encoding options are also supported for OEM and industrial RFID projects.

Compliant with EPC Class 1 Gen 2 (EPC C1G2) and ISO18000-6C standards, the RC5031 operates within the 860–960 MHz UHF frequency range, delivering stable and reliable RFID performance for supply chain tracking, baggage handling, asset management, retail inventory control, and automated identification systems.

Normal RFID label couldn't used for liquid. This labelis specially designed for anti-liquid application,suchas water,drink,alcohol,cosmetics,perfume,blood bag,etc.It is complaint with EPC C1G2 (ISO18000-6C)standard, operating frequency is 860 960MHz (It can be used worldwide).Each tag has a unique ID andstores user data.

Specifications

Physical Features	Model	5031

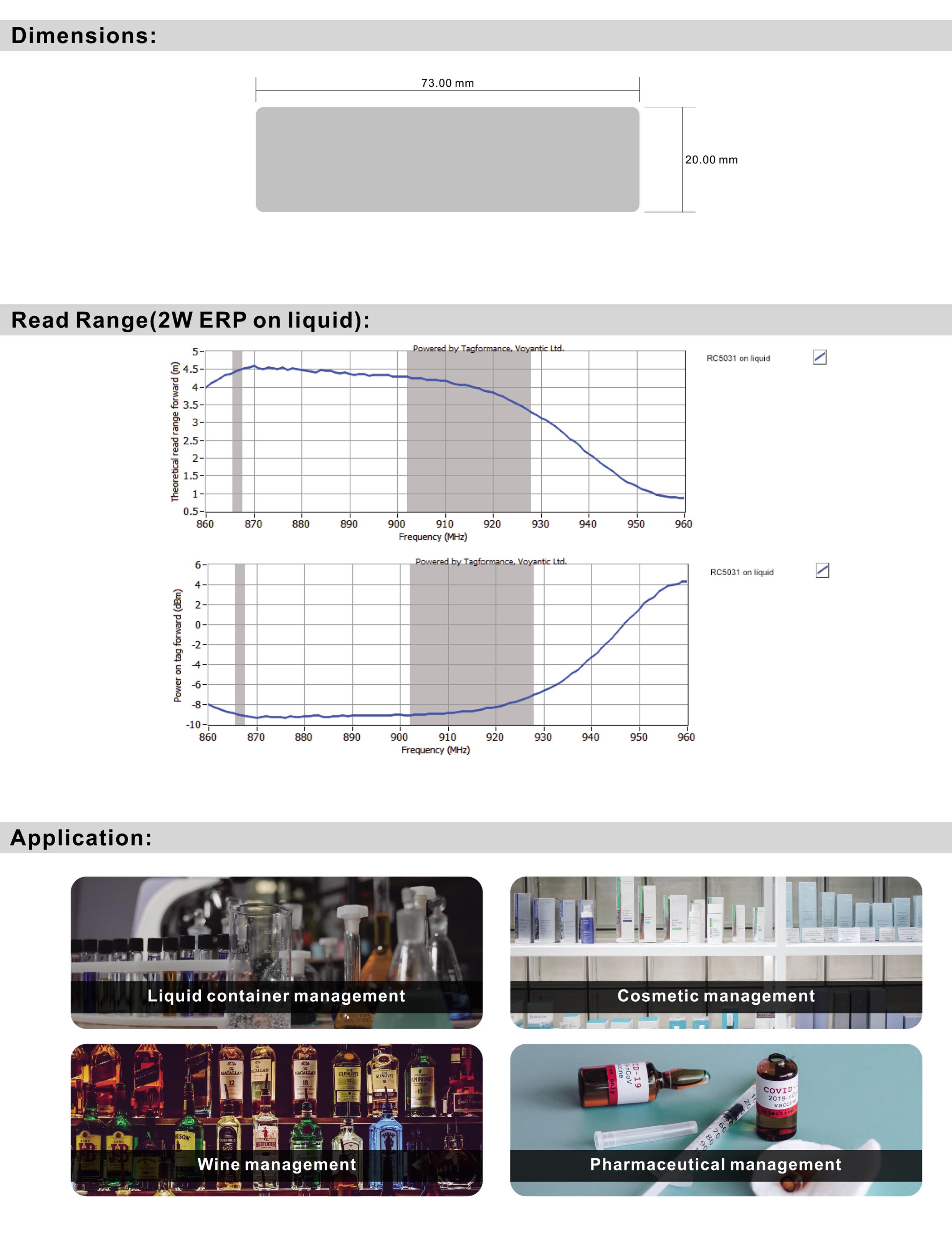

	Label Size	73 x 20 mm(customized)
	Material	PET
	Working Temp	-40~+85℃
	Storage Temp	23±3 ℃
	Storage Humidity:	50±15 %RH
RFID Features	RFID Standard	EPC C1G2 (ISO18000-6C)
	Chip Type	NXP Ucode 8/9
	Memory	U8:User - N/A; EPC - 128 bits; TID - 96 bits; Access Passwords - 32 bitsU9: User - N/A; EPC - 96 bits; TID - 96 bits; Access Passwords - N/A
	Read Range(Fixed Reader)	9.0 m, on liquid
Other Features	Data Storage	> 10 years
	Re-write	100000 times
	Customization	Printing LOGO, Barcode, Serial number, Encoding, Designing,etc
	Package	Reel core inner dimension: 76.2mm / 3(in), Outside diameter < 220 mm / 8.7(in),1000-5000pcs/roll, 4 rolls /carton
	Application	Liquid container management \| Cosmetic management Wine management \| Pharmaceutical management, etc.

Technical Features

Model:	RC5031
Material:	PET/Coated paper
Dimensions:	73x20 mm(customized)
Working Temp:	-40~+85℃
Storage Temp:	23±3℃
Storage Humidity:	50±15%RH
IP Code:	IP68,test for 5 hours at 1m deep water
RFID Features:
RFID Standard:	ISO/IEC 18000-6C(EPC Gen2)
Chip Type:	NXP UCode 8
Memory:	User- N/A; EPC-128 bits; TID-96 bits
Read Range(Fixed Reader):	9.0 m, on liquid
Other Features:
Data Storage:	>10 years
Re-write:	100,000 times
Installation:	Adhesive
Support Printer:	SATO CL4NX, Zebra ZT410 Silverline, Postek TX3r, etc.
Customization:	Printing LOGO, Barcode, Serial number, Encoding, Designing,etc
Package:	Reel core inner diameter: 76.2 mm /3" Outside diameter < 220 mm/8.7", 1000-5000 pcs/roll.
Application:	· Cosmetic management · Wine management · Pharmaceutical management,etc.
