7065 NXP Ucode 8 RFID Tag

Description

The 7065 Double Fold RFID label is developed for efficient identification and tracking of metallic assets in industrial environments. Featuring a flexible structure, it can be firmly applied to curved, uneven, or irregular metal surfaces with excellent adhesion and stable reading performance. Compatible with RFID printers for customized printing and chip encoding, this on-metal RFID tag is widely used in asset tracking, equipment management, logistics, and smart inventory systems.

This flexible label can be stuck on metallic asset easily, specially for irregular and uneven surface,t has goodperformance on metal surface, can be print and encoding by RFID printer.

Specifications

Physical Features	Model	7065
	Material	PET/Aluminum Foil/Foam

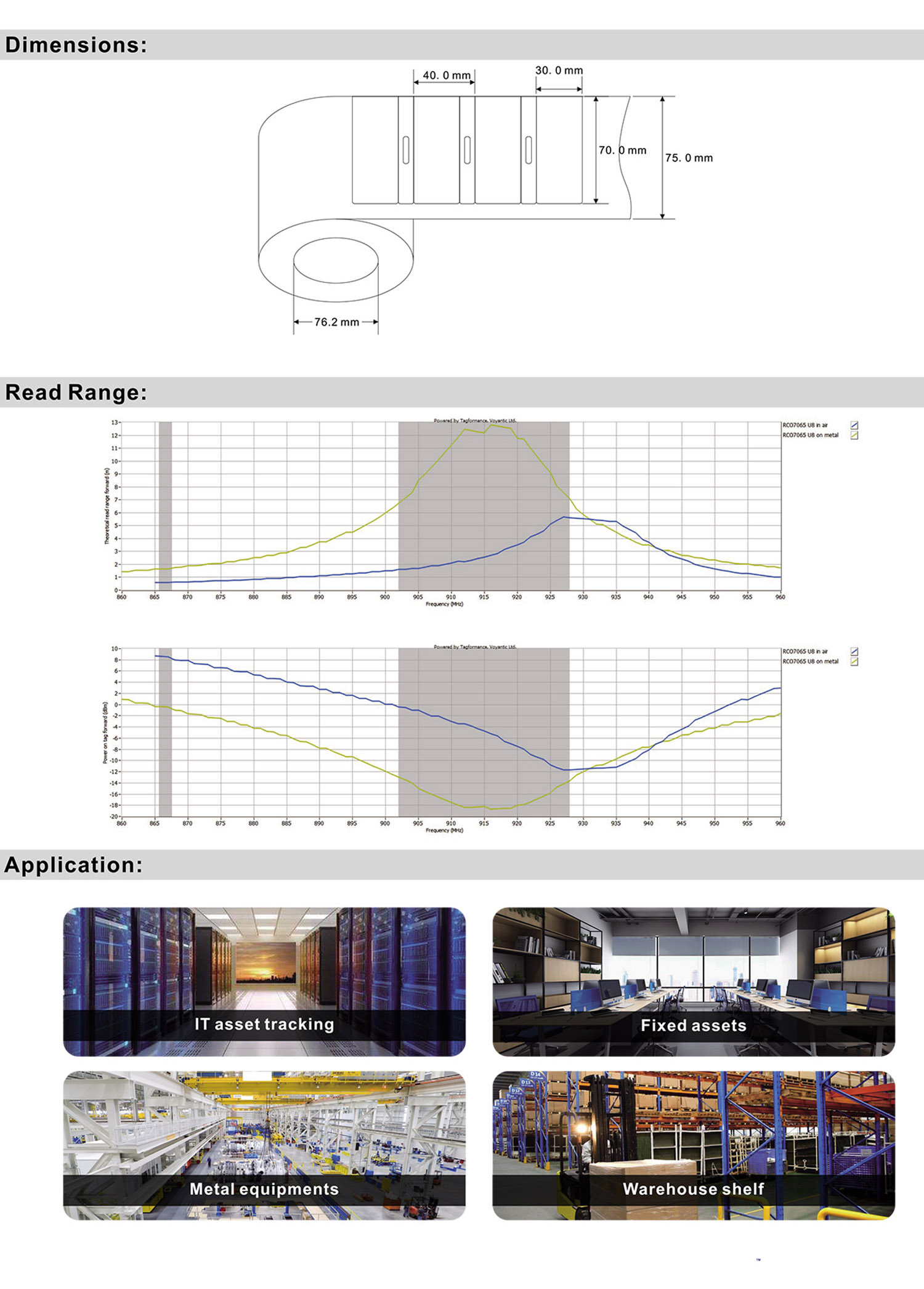

	Dimensions	70 x 30 x 1 mm(L x W x T)
	Working Temp	-40~+85℃
	Survive Temp	23±3 ℃
	Survival Humidity:	50±15 %RH
	IP Rating	IP68,test for 5 hours at 1m deep water
RFID Features	RFID Standard	EPC C1G2 (ISO18000-6C)
	Chip Type	NXP Ucode 8
	Memory	User -N/A; EPC - 128 bits; TID - 96 bits
	Read Range(Fixed Reader)	FCC :12.5 m, on metal; 5.8 m, in air
	Read Range(Handheld Reader)	FCC: 7.0 m, on metal; 3.0m, in air
Other Features	Data Storage	> 20 years
	Re-write	100000 times
	Installation	Adhesive
	Support Printer	SATO CL4NX, Zebra ZT410 Silverline, Postek TX3r, etc.
	Customization	Logo, parcoge/QR coae, number printing, encoding, antenna design, etc.
	Package	Reel core inner diameter: 76.2 mm / 3" , Outside diameter < 220 mm / 8.7", 500pcs/roll.
	Application	Metallic container tracking \| Equipment& device tracking Warehouse shelf Management \| IT asset tracking, etc.

Technical Features

Physical Features:
Model:	07065
Material:	PET/Aluminum Foil/Foam
Dimensions:	70x30x1mm(LxWxT)
Working Temp:	-40~+85℃
Storage Temp:	23±3℃
Storage Humidity:	50±15%RH
IP Code:	IP68, test for 5 hours at 1m deep water
RFID Features:
RFID Standard:	ISO/IEC 18000-6C (EPC Gen2)
Chip Type:	NXP UCode 8
Memory:	User-N/A; EPC- 128 bits;TID-96 bits
Read Range(Fixed Reader):	FCC: 12.5 m, on metal; 5.8 m, in air
Read Range(Handheld Reader):	FCC:7.0 m, on metal; 3.0 m, in air
Other Features:
Data Storage:	> 10 years
Re-write:	100,000 times
Installation:	Adhesive
Support Printer:	SATO CL4NX,Zebra ZT410 Silverline, Postek TX3r,etc. Printing LOGO, Barcode, Serial number, Encoding, Designing,etc Reel core inner diameter: 76.2 mm/3",Outside diameter < 220 mm /8.7",500pcs/roll.
Customization:
Package:
Application:	Metallic container tracking \| Equipment&device tracking Warehouse shelf \| Automotive components trackingIT asset tracking, etc.
