Impinj Monza R6P O8015 RFID Tag

Description

RFID ferro rugged tags are protected by a durable industrial-grade housing that provides outstanding resistance in harsh working environments. The rigid shell structure is designed to withstand strong impacts, temperature extremes, moisture, chemical exposure, and heavy mechanical wear, making these tags highly reliable for demanding industrial and outdoor RFID applications.

For metal asset tracking, the tags are available with advanced anti-metal technology specially optimized for mounting on metallic surfaces. An integrated shielding layer minimizes RF interference caused by metal, helping to overcome common problems such as signal loss and unstable readability found in ordinary RFID tags. Combined with high-sensitivity RFID chips and optimized antenna performance, these rugged tags deliver extended reading distance, accurate data capture, and stable operation in complex industrial environments.

RFID Ferro rugged tags are housed in a tough, rigid, andprotective shell-such as industrial plastic-making themsuitable for the most aggressive environments, includingphysical impacts, extreme temperatures, moisture, chemicals,and mechanicalstress.

These tags include high-protection anti-metal variantsspecifically designed for attachment to metal surfaces. Aninternal anti-metal layer counteracts signal interference frommetal, solving the signal attenuation and readability issuescommon with ordinary tags in metal environments. Combinedwith high-performance chips and optimized antennas, theyachieve longer reading distances and stable performance onmetalsurfaces.

Diverse types are available based on application needs,including metal-mounted, non-metal, HF (NFC), UHF, anddual-band options. Multiple installation methods aresupported, such as glue, self-adhesive, screws, rivets, and zipties. High protection ratings such as IP68 ensure reliableoperation in harsh conditions. With a variety of chip types andoperating frequencies covering both UHF and HF, these tagsare widely used in metal asset management, metal equipmentmanagement, industrial applications, warehousing, logistics,and other fields.

Specifications

RFID Features	Mdoel	P8015
	Air Interface Protocol	EPC Class 1 Gen 2 / ISO 18000-63 Type C
	Frequency	860-960 MHz
	Chip Type	impinj Monza R6P
	Memory	User - 32(64) bits; EPC - 128(96) bits; TID - 96 bits
	Data Storage	> 10 years
	Re-write	100,000 times

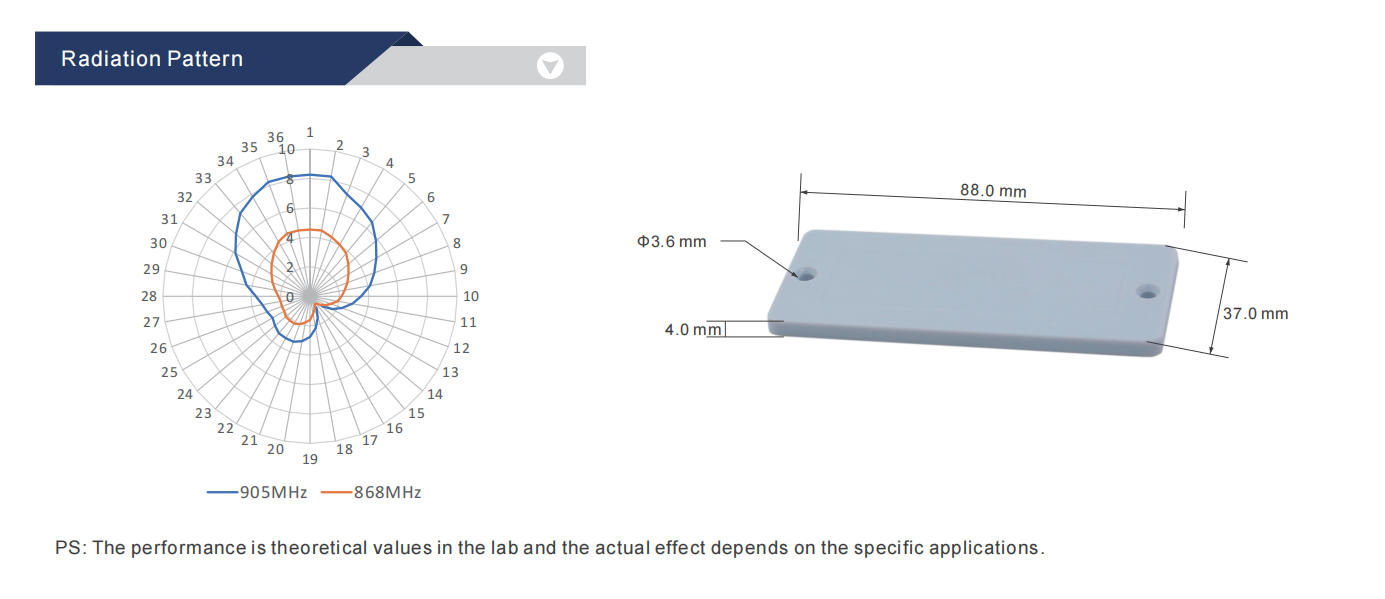

	Read Range(2W ERP)	FCC: > 8.3 m(27.2 ft) , on metal ETSI: > 4.5 m(14.8 ft) , on metal
Physical Features	Dimension	88 x 37 x 4 mm / 3.46 x 1.46 x 0.16 in
	Material	Engineering Plastics
	Weight	10.4 g
	Color	Gray
	Operating Temperature	-40°C to 85°C / -40°F to 185°F
	Survival Temperature	-40°C to 120°C / -40°F to 248°F
	Storage Condition	20±5℃, 50±10% RH, Store away from sunlight
	IP Rate	IP68, test for 5 hours at 1m deep water
Other Features	Installation	Adhesive(clean and dry surface), Rivet, Magnet, Screw
	Customization	Printing, Encoding, Design, etc.
	Package	100 pcs / bag, 10 bags / box
	Application	Construction & heavy equipment / Oil, gas, energy facility Automotive & aerospace fixture / Container & storage rack

Highlights & Benefits

Preeminent performance based on specific applications

Robust and durable for harsh environment

Reusable & cost-effective Long-term

Various type and installation options

Customization: design, printing, encoding, etc, available

Applications

Construction & heavy equipment

Oil, gas, energy facility

Automotive & aerospace fixture

Container & storage rack

Technical Features

Model	O8015
RFID Features
Air Interface Protocol	EPC Class 1 Gen 2/ISO 18000-63 Type C
Frequency	860-960 MHz
Chip Type	impinj Monza R6P
Memory	User - 32(64) bits; EPC -128(96) bits; TID-96 bits
Data Storage	>10years
Re-write	100,000 times
Read Range(2W ERP)	FCC:>8.3m(27.2 ft),on metal ETSI: >4.5 m(14.8 ft), on metal
Physical Features
Dimension	88x37x4 mm/3.46x1.46x0.16 in
Material	Engineering Plastics
Weight	10.4g
Color	Gray
Operating Temperature	-40℃ to 85℃/-40°℉ to 185°℉
Survival Temperature	-40℃ to 120℃/-40°℉ to 248°℉
Storage Condition	20±5℃,50± 10% RH, Store away from sunlight
IP Rate	IP68, test for 5 hours at 1m deep water
Other Features
Installation	Adhesive(clean and dry surface), Rivet, Magnet, Screw
Customization	Printing, Encoding, Design, etc.
Package	100 pcs/bag, 10 bags/box
